Zettlex IncOder CORE Inductive Rotary Encoder Compact Lightweight
Inductive Rotary Encoder Compact Lightweight PCB construction No calibration
Absolute, Lightweight, Robust.

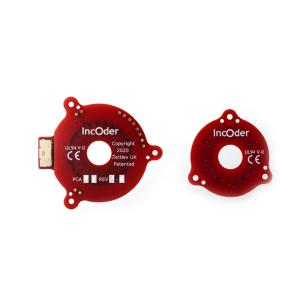

IncOder CORE is a non-contact, lightweight absolute rotary inductive encoder fully containedin a printed circuit board kit.The position sensor utilizes a unique field-proven inductive technique,delivering highly repeatable, reliable, temperature-stable measurement performance.The angle sensor can be installed simply by mounting the rotor and stator pair into the host assembly by means of M2 mounting holes. With modest installation tolerances, a programmable zero set and no calibration required, the sensor can be screwed (and optionally doweled) in place for quick, practical, and reliable setup. Each sensor includes a passive rotor target, paired with an active stator. The stator contains all the required processing electronics in a lightweight, stacked circuit board package. The stator features a 10-way Molex PicoClasp connector for power input and data outputs. The IncOder CORE can be configured to output up to 17-bits of absolute position data in a range of protocol options including SPI, BiSS-C, and SSI.
Specification | IncOder CORE |
Rotor OD (screw hole PCD) | 35.6 mm (36mm) |
Stator OD (screw hole PCD) | 44 mm (56.8 mm) |
ID | 10.4 mm |
Height | 13.1 mm |
Installation | 0.5 ± 0.2 mm Gap 0.2 mm Max Radial Offset |
Communication Protocols | SSI, BiSS-C, SPI, Async Serial |
Resolution | 10 - 17 bits |
Accuracy | 0.1° |
Repeatability | ± 1 LSB |
Max Speed | 10,000 rpm |
Supply Voltage | 5-12 VDC |
Current Consumption | <100 mA |
Measurement Update Rate | 10 kHz |
Operating Temperature | -20 to +85 °C |
Temperature coefficient | <1 ppm |
Mass | 2.8g (Target) |
